Vacuum Reflow Oven

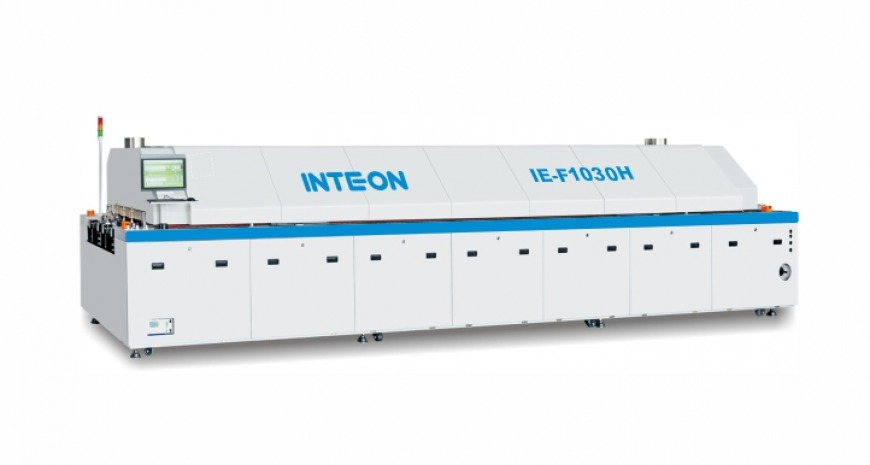

Vacuum Reflow Oven – IE-F1030 Series

Advanced vacuum reflow soldering solution for void-free electronics manufacturing

The IE-F1030 Series Vacuum Reflow Oven is a high-performance inline system designed to eliminate voids in solder joints. It is ideal for demanding applications such as automotive (headlights, power modules), aerospace, aviation, medical devices, BGA, FPC, LED, and other high-reliability SMT processes.

Specification
Detailed description

Vacuum Reflow Oven Specification:

Basic parameters
Models	IE-F1030L	IE-F1030H	IE-F1030DS	IE-F1030DL	IE-F1030DM
Dimension (mm）	L6300D1430H1630	L7100D1430H1630	L7100D1680H1600	L7100D1680H1600	L7100D1680H1600
Weight	Approx.:3000KG	Approx.:3300KG	Approx.:3500KG	Approx.:3500KG	Approx.:3500KG
Number of heating zones	Top 9 /bottom 9	Top 10 /bottom 10	Top 10 /bottom 10	Top 10 /bottom 10	Top 10 /bottom 10
Number of cooling zones	Top 2 /bottom 2	Top 3 /bottom 3	Top 3 /bottom 3	Top 3 /bottom 3	Top 3 /bottom 3
Cooling method	Forced water cooling
Exhaust requirements	10m3 /H*2
Void rate	Approx.:1%-2%
Control system
Power requirements	3P 380V/220/480 50/60Hz
Total power	68KW	74KW	90KW	85KW	85KW
Segmented starting power	38KW	40KW	50KW	50KW	50KW
Power consumption	Approx：10-15KW	Approx：12-18KW	Approx：12-20KW	Approx：13-20KW	Approx：13-20KW
Hot air blower speed regulation	Inverters
Heating time	Approx：30min
Temperature control range	Room temperature ~ 300 °C can be set
Production recipes	Multi-combination production recipes can be stored
Transportation
Rail structure	Single lane	Single lane	Dual lane	Dual lane	Dual lane
Vacuum structure	Single chamber	Single chamber	Dual chamber	Single chamber	Single chamber
Pallet dimension（mm）	L400*D400	L400*D400	L400*D250	L400*D250	L400*D250
Conveyor height（mm）	900±20
Mode of conveying	Chain drive
Vacuum system
Minimum vacuum pressure	0.1KPa
Vacuum pump flow	1500L/min	1500L/min	1000L/min	1000L/min	1500L/min
Pressure relief time	≤10s
Production efficiency	≥40S
Optional nitrogen system
Nitrogen structure	Full/local nitrogen filling
Nitrogen system	Automatic/manual
Nitrogen consumption	Approx.600L/min	Approx.600L/min	Approx.700L/min	Approx.700L/min	Approx.：700L/min

Key Features

✅ Extremely low void rate: 1% – 2%
✅ Minimum vacuum pressure: 0.1 kPa
✅ Multiple models available: single-lane / dual-lane, single-chamber / dual-chamber configurations
✅ Up to 10 heating zones + 3 cooling zones with forced water cooling
✅ Temperature range: room temperature ~ 300°C
✅ Chain conveyor with pallet system (up to 400 × 400 mm or 400 × 250 mm)
✅ Hermes / Industry 4.0 ready
✅ Optional full or local nitrogen atmosphere
✅ Multi-recipe storage and precise temperature control
