True 4K Resolution • Autofocus • 2D/3D Switching • Measurement Functions • ESD Safe • 360° Angle View Mode

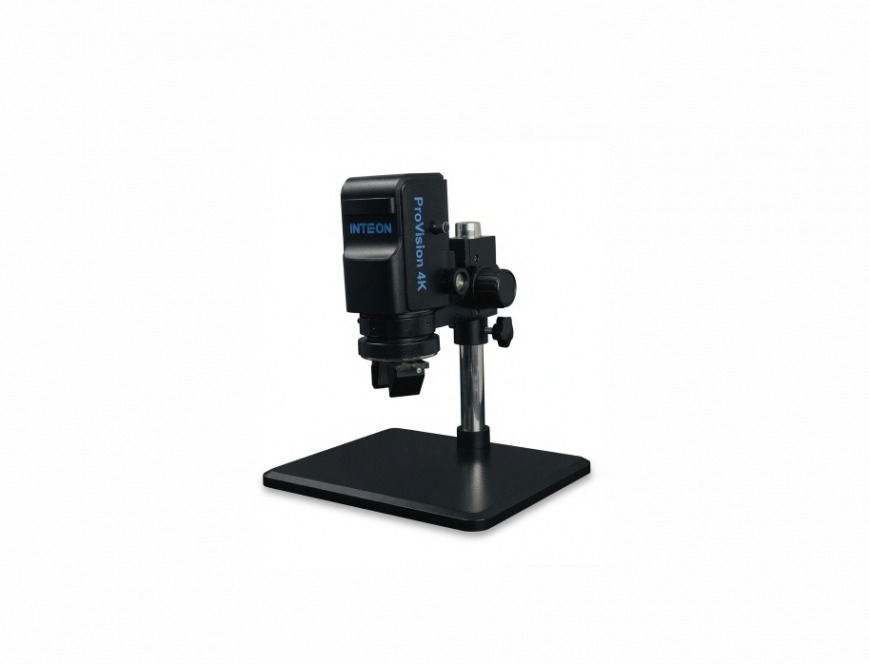

The INTEON ProVision 4K is a high-performance 4K digital microscope designed for professional use in electronics manufacturing, quality control, and precision inspection tasks. It offers true 4K resolution, fast autofocus, 2D/3D mode switching, and advanced measurement functions in a robust and user-friendly design.
 |
 |
Electronics manufacturing, PCB inspection, rework, quality control, laboratory use.
| Parameter | Specification |
|---|---|
| Image Quality | 3840 × 2160P @ 60 FPS (True 4K) |
| Sensor | 1/1.8 inch Sony Sensor |
| Output Interface | HDMI + UVC-USB 3.0 |
| Optical Magnification | 0.7X – 5.0X (Continuous Zoom) |
| Digital Magnification | 25X – 230X (Adjustable) |
| Storage | Direct USB Flash Drive Storage |
| Base | Metal, 320 × 260 × 20 mm |
| Column Height | 280 mm |
| Light Source | Built-in Adjustable LED Ring Light |
| Camera Functions | Auto Focus, Photo & Video Recording, Measurement |
Precision. Clarity. Flexibility. Unbeatable price.
In today’s demanding electronics manufacturing and quality control environments, precision, speed, and image clarity are essential. The INTEON ProVision 4K is a high-performance true 4K digital microscope that meets these requirements with advanced features and outstanding usability.
Equipped with a 1/1.8-inch Sony sensor, the ProVision 4K delivers stunning true 4K resolution (3840 × 2160 @ 60 FPS). The combination of high-resolution imaging, continuous optical zoom (0.7X – 5.0X), and digital magnification up to 230X ensures every detail is clearly visible.
One of the most powerful features of the ProVision 4K is the 360° Angle View Mode. This allows operators to inspect components from virtually any angle without moving the sample or the microscope. It is particularly valuable when inspecting complex assemblies, connectors, solder joints, and hard-to-reach areas.
| Parameter | Specification |
|---|---|
| Image Quality | 3840 × 2160 @ 60 FPS (True 4K) |
| Sensor | 1/1.8 inch Sony Sensor |
| Output Interface | HDMI + UVC-USB 3.0 |
| Optical Magnification | 0.7X – 5.0X (Continuous Zoom) |
| Digital Magnification | Up to 230X |
| Storage | Direct USB Flash Drive Storage |
| Base | Metal, 320 × 260 × 20 mm |
| Column Height | 280 mm |
| Light Source | Built-in Adjustable LED Ring Light |
| Special Features | Autofocus, 2D/3D Switching, Measurement, 360° Angle View Mode |
The INTEON ProVision 4K is the perfect solution for:
The INTEON ProVision 4K represents a significant advancement in digital microscopy. By combining ultra-high 4K resolution, smart automation features, and the unique 360° angle view capability, it helps manufacturers and technicians achieve higher quality standards while significantly improving productivity and inspection accuracy.
Ready to upgrade your inspection capabilities?
Contact us today to schedule a live demonstration or request a detailed quote.
