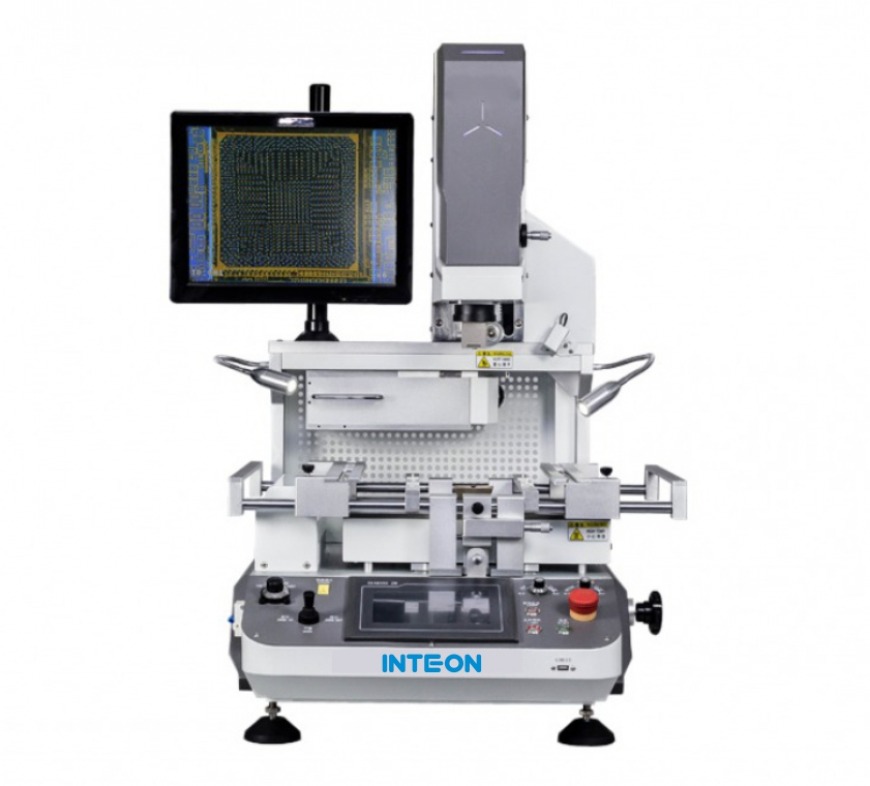

IE-6200BGA Rework Station

FEATURES

SUPERIOR SAFETY FUNCTIONS

After finish desoldering and soldering, there is alarming, when temperature goes out of control, the circuit
will automatically power off, it is of double excess temperature protection function. Temperature parameter
has a password to avoid arbitrary changes , with superior safe protection functions, can protect PCB, components
and the machine from damage at any abnormal situation.

PRECISE OPTICAL ALIGMENT SYSTEM

Precise optical alignment system
with optical alignment system and clear images, components can enlarge up to Maximum 230 times,
mounting accuracy within +/-0.01mm, with a beam split, zoom in, zoom out and micro-adjust functions,
adopted 12” HD monitor.


3 INDEPENDENT HEATING SYSTEM

IE-6200BGA is available heating portion of the PCB board by hot-air circulate both from top and bottom
at the same time. With large IR bottom heating, it can completely avoid PCB deformation during reworking
period, you can use software to choose freely or use top heater or bottom heater departly, and combine
freely with top and bottom heater’s capacity,to make it easies for rework double BGA, CCGA, QFN, CSP, LGA,
SMD etc. External sensor socket is precise detected temperature to analyze and proof on actual.


MULTI-FUNCTION OPERATION SYSTEM

With touch screen interface, k-type thermocouple, close-loop control, and Intelligent
temperature compensation with automatically system, integrated design of
top heater and sucker point. It can auto identify a high degree of suction and
mounting with automatic soldering and d soldering functions. the temperature can
be set to 6 segment and 6 segment constant temperature control, N groups of
storage temperature setting parameters according to kinds of BGA chip set.

Specification


Model IE-6200BGA Specification
Total Power Max 5300W
Power AC 230 V ±10 % 50/60 Hz
Top heater power 1200W (1st heater)
Bottom heater power 1200W (2nd heater)
3rd IR heater 2700W (independent controlling left and right IR heaters)
Hot air temperature 400°C (Max)
Preheating temperature 400°C (Max)
Power supply AC230V±10% 50/60Hz
Dimension L640 × W630 × H900mm
Positioning V-groove + universal fixture
Temperature control K-type thermocouple (Closed Loop)
PCB size Maximum: 410 x 370mm, Minimum: 65 x 65mm
Electrical materials High precision temperature control system
External Temperature sensor 1 piece
Weight 70 kg
Package Wooden Box
