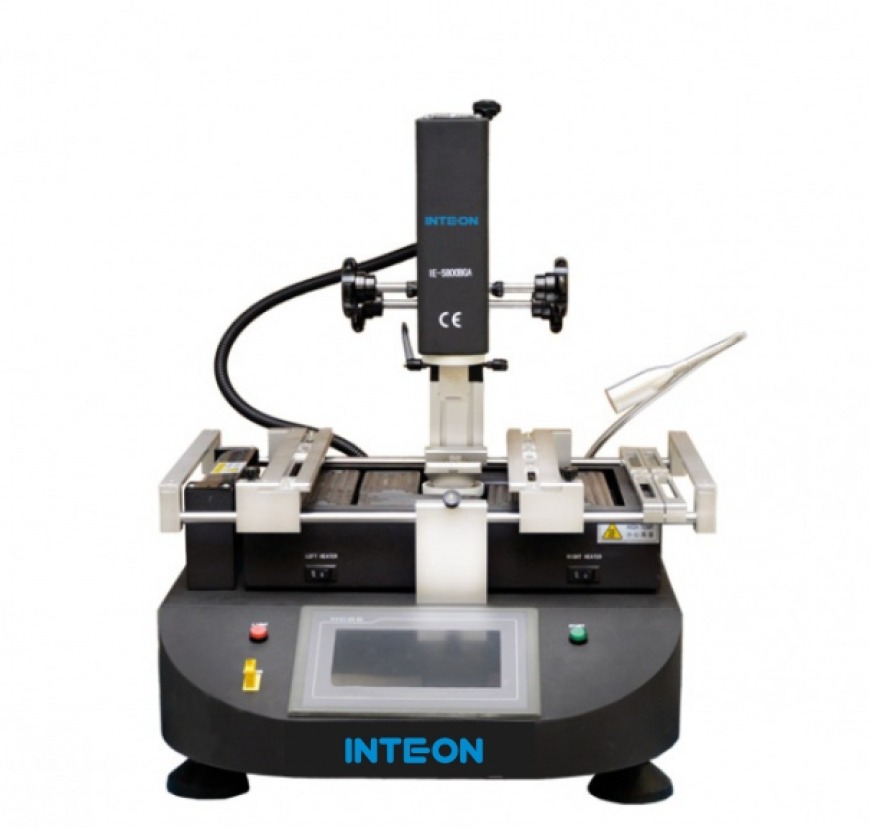

IE-5800BGA Rework Station

FEATURES

ADOPT LINER SLIDE

Which makes X,Y,Z axis all can do precision adjustment or fast positioning, with high positioning accuracy and fast maneuverability.


HIGH DEFINITION TOUCH SCREEN

PLC control, can save multiple groups profile, password protection and modify function, and can save multiple groups profile, equipped with instant temperature curve analysis function.


3 INDEPENDENT HEATING AREAS

There are from top to bottom. The 1st and 2nd are hotair heaters, the 3rd is IR preheating, temperature controlled within ±3°. Top heater can be adjusted freely, second heater can be adjusted up and down, top and bottom temperature can control many groups and sections of temperature parameters at the same time. The third IR heater can be adjusted the power consumption.


EASY TO INSTALL AND CHANGE

Offer all kinds of hot-air nozzle, it can rotate 360°. With magnet, easy to install and change, customized is available. Bottom IR heater ensure an even heat for PCB board.


HIGH-PRECISION K-TYPE THERMOCOUPLE

Choose an imported high-precision K-type thermocouple, with closed loop control and automatic temperature compensation system,and a  combined PLC module for the precision control of temperature.


FLEXIBLE FIXTURE FOR PCB POSITIONING

Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB from deformation when heated or cooled, and it can rework for any BGA package size. Powerful cross-flow fan rapidly cool the PCB board to improve efficiency, also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly. After finishing disordering & soldering, there is an alarming and alarming in advance.


AUTOMATIC POWER-OFF PROTECTION DEVICE

CE certificate, with emergency stop and Automatic power-off protection device when abnormal accident happens, with a double over-heating protection control.



Specification


Model IE-5800BGA Specification
Total Power 4500W
Power AC 230 V ±10 % 50/60 Hz
Top heater power 800W
Bottom heater power 2nd heater 1200W, 3rd IR heater 2400W
Power supply AC230V±10% 50/60Hz
Dimension L535*W650*H600mm
Positioning V-groove, PCB support can be adjusted in any direction with external
universal fixture
Temperature control (K Sensor) closed loop, independent heating, precision within 3°
PCB size Max 350*330mm Min 20*20 mm
Electrical selection Highly sensitive temperature control module, Touch screen
Weight 34kg
Package Wooden Box
G.W 51kg
Package Dimension L71*W71*H68cm
